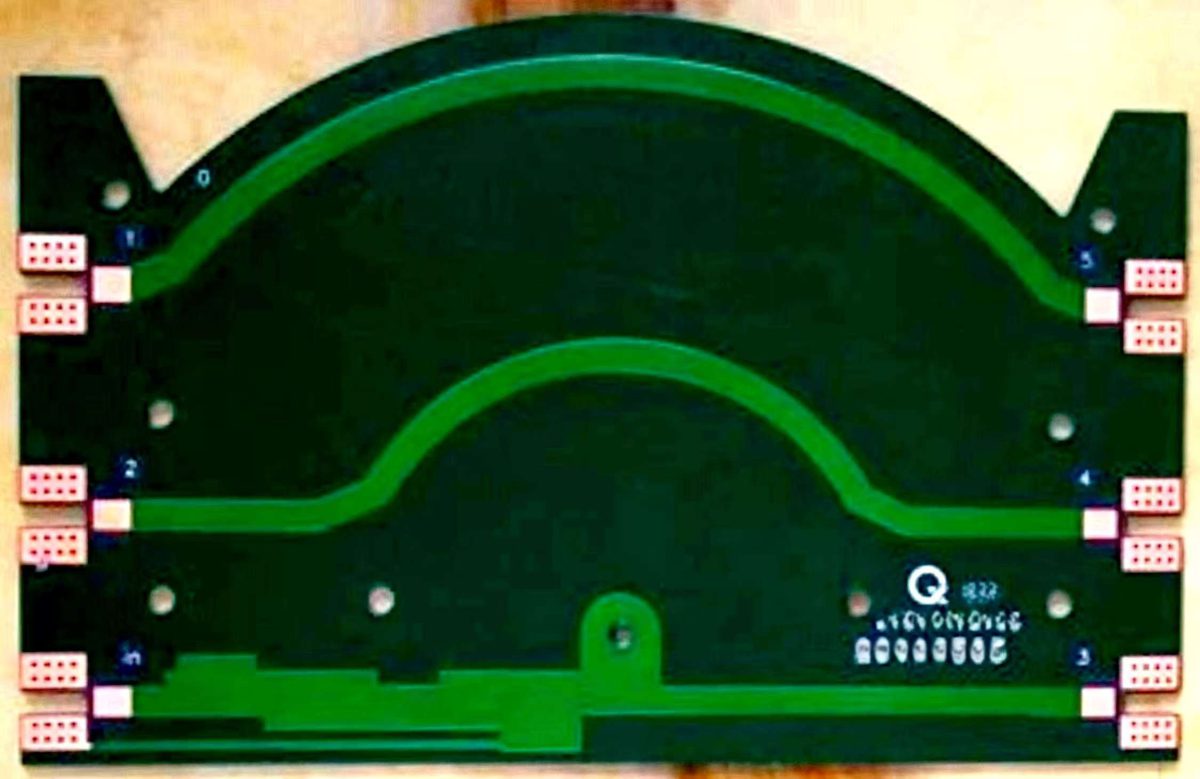

Rogers PCB Manufacturing: Unlocking High-Performance Circuitry with SQPCB

 In the world of electronics, speed and reliability matter more than ever. Think about 5G networks racing data across cities or satellites beaming signals from space. These setups demand PCBs that handle high frequencies without losing power. Rogers materials stand out here. They offer low loss factors and stable performance under heat. As a top Rogers PCB manufacturer, SQPCB brings these tough materials to life. You get boards built for real challenges. This guide shows how SQPCB turns complex ideas into reliable circuits. Stick around to learn tips that boost your signal strength and cut risks.

Understanding Rogers Materials – The Foundation of High-Frequency Performance

Rogers laminates change the game for electronics that push limits. Standard boards often falter at high speeds. But Rogers keeps signals clear and strong.

Why Rogers Laminates Excel Over Standard FR-4

FR-4 works fine for basic gadgets. Yet it soaks up too much energy at fast frequencies. Rogers cuts that loss with a low dielectric constant, around 3.0 to 3.5. Its dissipation factor sits below 0.003, far better than FR-4's 0.02.

This means less heat and sharper signals. Imagine a race car on smooth asphalt versus gravel. Rogers provides that smooth path for your data. You see speeds up to 50% higher in tests. For RF apps, this slashes errors and boosts range.

Engineers pick Rogers for gigs like radar systems. The material holds up in tough spots. No more weak links in your chain.

Key Rogers Material Families and Their Ideal Applications

Rogers offers lines tailored to needs. The RO4000 series suits mid-range frequencies. Take RO4350B—it's great for power amps in cell towers. It blends well with FR-4 for hybrid builds.

Then there's RO3000 for super-high speeds. RO5880 shines in microwave antennas. Military gear loves the 6002 series. It withstands shocks and extreme temps.

• RO4000: Base stations and automotive radars.
• RO3000: Satellite comms and test gear.
• 6002: Defense hardware under fire.

Each picks the right tool for the job. You match material to task for peak results.

Thermal Management: Managing Heat in High-Power RF Designs

Heat kills circuits fast. Rogers fights back with high decomposition temps over 300°C. Its CTE matches copper traces closely, around 16 ppm/°C.

This stops cracks from temp swings. Picture a bridge that bends but doesn't break. In RF power amps, poor matching leads to 20% failure rates. Rogers drops that to near zero.

You design with thermal pads or vias. SQPCB tests for even heat spread. This keeps your board running cool under load.

SQPCB’s Expertise in Rogers PCB Fabrication Processes

Making Rogers PCBs takes skill. Standard methods fail on these low-loss sheets. SQPCB nails the details every time.

Precision Etching and Plating for Tight Tolerances

Etching Rogers demands special acids. They avoid undercuts that ruin fine lines. SQPCB uses laser-guided tools for ±0.001 inch accuracy.

Plating adds copper without flaws. Controlled impedance hits 50 ohms spot on. Think of it as threading a needle in the dark—SQPCB does it blindfolded.

Challenges like copper peel vanish with their process. You get boards ready for high-speed tests right away.

Advanced Laminating and Stack-Up Techniques

Stacking layers is tricky with Rogers. It bonds to prepregs without air pockets. SQPCB presses at exact temps to fuse them tight.

Voids cause shorts or weak spots. Their vacuum method ensures zero gaps. Hybrid stacks mix Rogers with FR-4 seamlessly.

You benefit from custom builds. Multi-layer boards hold up in 5G routers or drones. SQPCB handles up to 40 layers without sweat.

Specialized Surface Finishes Optimized for RF Performance

Surface choice affects signal flow. ENIG gold blocks oxidation in humid spots. Immersion silver cuts costs for short runs.

SQPCB picks based on your RF needs. Soft gold suits high-frequency probes. It lowers insertion loss by 15% over tin.

Long-term, these finishes fight corrosion. Your boards last in factories or outdoors. No more rework headaches.

Navigating Design Challenges Specific to Rogers PCB Layout

Rogers layouts need care. One wrong trace and signals blur. SQPCB shares proven paths to success.

Achieving and Maintaining Controlled Impedance Across Layers

Impedance must stay steady. Use Rogers-specific calculators for trace widths. Aim for 0.1 mm spacing on 50-ohm lines.

Tools like Polar SI9000 help. SQPCB verifies with fab data. Variations over 5% hurt performance.

Tips: Keep dielectrics uniform. Test early to tweak. You lock in speeds without surprises.

Signal Integrity Optimization: Crosstalk and Phase Matching

Crosstalk muddies signals. Route differential pairs close, under 5 mm apart. Rogers low Df keeps noise low.

For phase match, equalize lengths to 0.5 mm. Phased arrays in radars demand this. Ever wonder why antennas sync? It's all in the lines.

Use ground planes to shield. SQPCB routes for minimal interference. Your high-speed links run clean.

Thermal Relief and Via Design Considerations

Vias carry heat away. In Rogers, stitch them densely for copper pour. Back-drilling skips RF layers to cut stubs.

Standard drills add loss—avoid them. SQPCB uses blind vias for clean paths. Pitfalls like via resonance spike at 10 GHz.

Design with sim software first. You balance heat and speed. Boards stay reliable in hot spots.

Quality Assurance and Certifications for High-Reliability Rogers Builds

Trust starts with checks. SQPCB tests every step. You know your Rogers PCB will perform.

Rigorous Testing Protocols for Dielectric Consistency

Post-fab, TDR checks impedance. It spots flaws down to 1 cm. SQPCB runs IPC-TM-650 standards.

X-ray scans layers for voids. Electrical tests confirm Df under 0.002. No weak dielectrics slip through.

This catches issues early. Your yield jumps 95%. Peace of mind for critical apps.

Traceability and Material Verification (From Raw Stock to Final Product)

Rogers certs arrive with sheets. SQPCB logs batch numbers end to end. Scans verify thickness and purity.

Full chains prevent fakes. In aerospace, one bad lot costs millions. Their system tracks it all.

You trace back if needed. No black boxes here—just clear paths.

SQPCB’s Commitment to Industry Compliance and Certifications

ISO 9001 covers their base ops. For space work, AS9100 adds rigor. IPC Class 3 meets mil-specs.

UL marks ensure safety. SQPCB audits yearly for updates. This proves they handle high-stakes jobs.

Certifications build trust. You partner with pros who follow rules.

Future-Proofing Your Electronics with Expert Rogers PCB Manufacturing

Rogers materials and SQPCB expertise create tough circuits. You cut signal loss, handle heat, and meet tight specs. Design tips like impedance control save time and cash.
